Sản phẩm |
|
|
Tên Hãng |
ASUS |
|
Model |

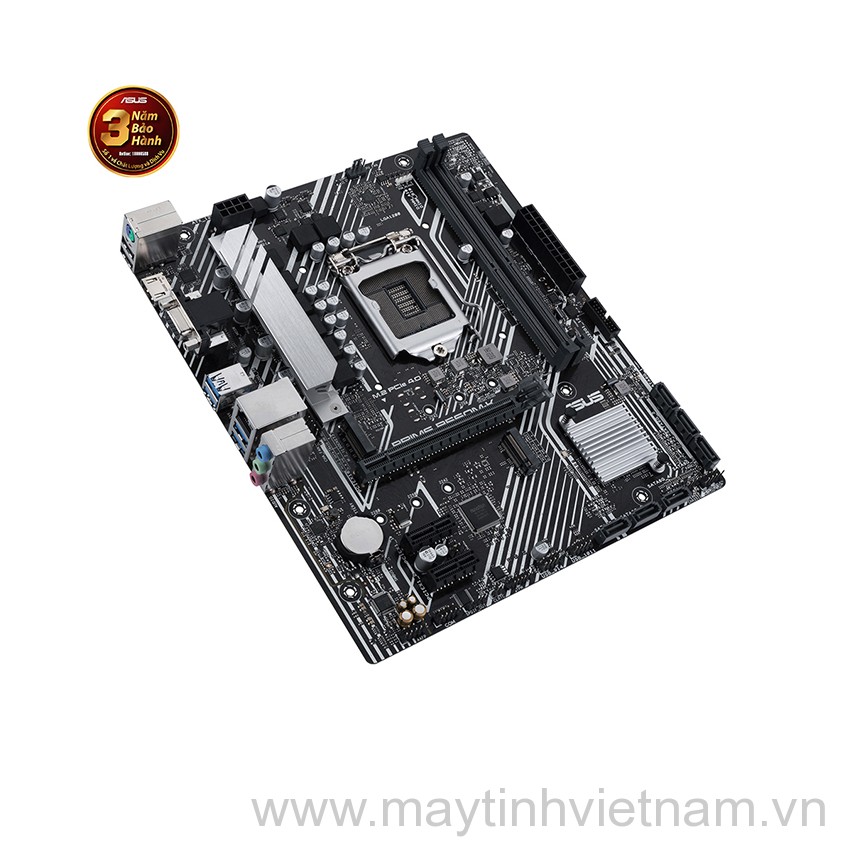

PRIME B560M-K |
|
CPU hỗ trợ |
|
|
Chipset |
B560 |
|
RAM hỗ trợ |
2 x DIMM SLOTS, tối đa 64GB DDR4 |
|
Khe cắm mở rộng |
Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel®11th Gen processors support PCIe 4.0 x16 mode - Intel®10th Gen processors support PCIe 3.0 x16 mode Intel® B560 Chipset 2 x PCIe 3.0 x1 slots |
|
Ổ cứng hỗ trợ |
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel®B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
|
Cổng kết nối (Internal) |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
Cổng kết nối (Back Panel) |
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|
LAN / Wireless |
1 x Intel® I219-V 1Gb Ethernet |
|
Kích cỡ |
microATX |
