Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

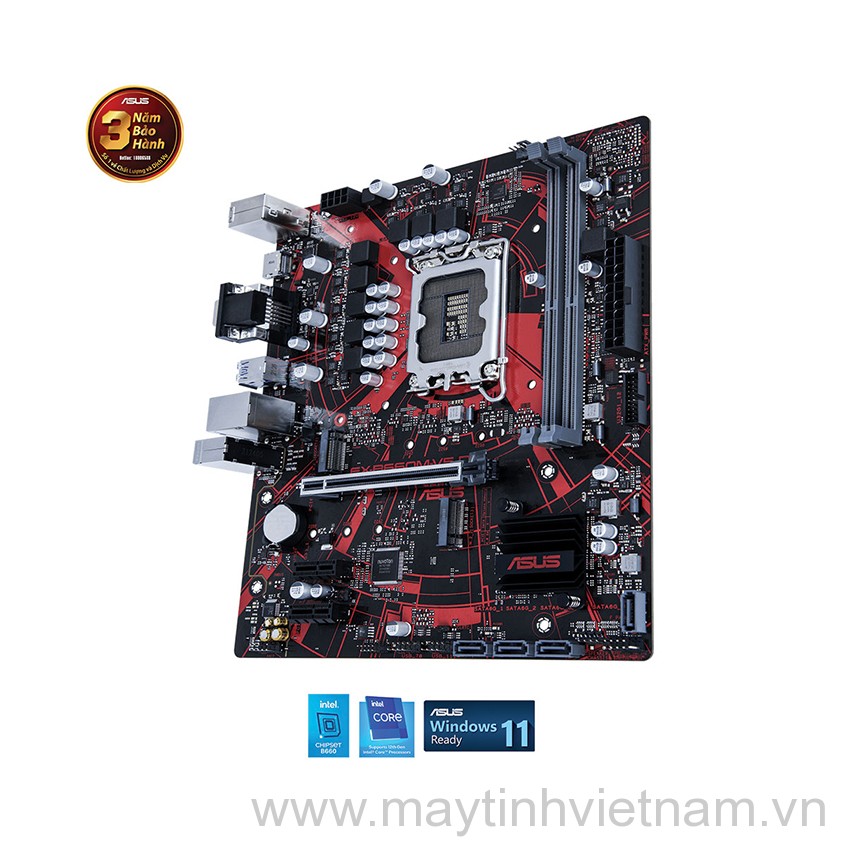

EX-B660M-V5 D4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

2 x DDR4 memory slots, support up to 64GB DDR4 5333(OC)/5000(OC)

4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)

3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000

2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 4.0/3.0 x16 slot

Ổ cứng hỗ trợ

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI® port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 1Gb Ethernet

Kích cỡ

9.6 inch x 8.3 inch(24.4cm x 21.1cm)

m-ATX Form Factor
