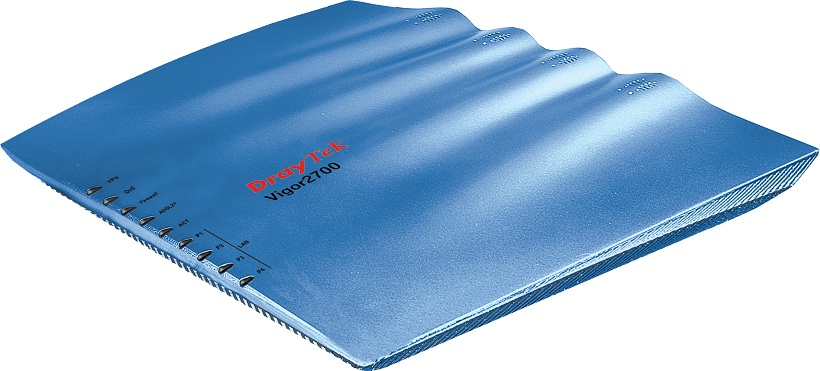

Đặc tính kỹ thuật của Vigor2700V |
|||
|
Hardware Interface |
ADSL |
AnnexA : 1-port ADSL2+, RJ-11 connector |
|
|
AnnexB : 1-port ADSL2+, RJ-45 connector |
|||
|
LAN |
4-port 10/100 Base-Tx Switch, RJ-45 connectors |
||
|
ADSL Compliance |
ADSL |
G.dmt ( G.992.1 ) |
|
|
ANSI T1.413 Issue2 |
|||
|
ADSL2 |
G.dmt.bis ( G.992.3 ) |
||
|
ADSL2+ ( G.992.5 ) |
|||
|
READSL |
|||
|
Up to 24Mbps downstream and 1Mbps upstream |
|||
|
ATM Protocol |
Multiple Protocol over AAL5 ( RFC 2684 ) |
||
|
PPP over Ethernet and AAL5 ( RFC 2516,2364 ) |
|||
|
Up to 8 PVCs |
|||
|
PPPoE pass through from LAN / WLAN |
|||
|
Transparent Bridge for MPoA |
|||
|
Firewall Features |
IM/P2P Blocking |
||
|
Multi-NAT, DMZ Host, Port-Redirect / Open Port |
|||
|
Rule-Based IP Packet Filtering |
|||
|
SPI ( Stateful Packet Inspection ) |
|||
|
DoS / DDoS protection |
|||
|
IP address Anti-Spoofing |
|||
|
E-mail alert and logging via syslog |
|||
|
VPN pass-through |
|||
|
QoS |
Class-based bandwidth guarantee by user-defined traffic categories |
||
|
Support of four priority levels |
|||
|
Support of DiffServ codepoint classifying |
|||
|
Virtual Private Network |
Up to 2 VPN tunnels |
||
|
DHCP over IPSec |
|||
|
Protocol |
PPTP |
||
|
IPSec |
|||
|
L2TP |
|||
|
L2TP over IPSec |
|||
|
Encryption |
AES |
||
|
MPPE |
|||
|
DES / 3DES |
|||
|
Authentication |
MD5 |
||
|
SHA-1 |
|||
|
IKE authentication |
Pre-shared key |
||
|
Digital signature ( X.509 ) |
|||
|
LAN to LAN and Teleworker to LAN |
|||
|
Dead Peer detection |
|||
|
IPSec NAT-Traversal ( NAT-T ) |
|||
|
Network Features |
DHCP client / relay / server |
||
|
Dynamic DNS |
|||
|
SNTP client |
|||
|
Call scheduling |
|||
|
RADIUS client |
|||
|
DNS cache / proxy |
|||
|
UPnP |
|||
|
Port-based VLAN |
|||
|
IGMPv2 proxy / snooping |
|||
|
Routing Support |
RIPv2 |
||
|
Static Route |
|||
|
Content Filtering |
URL key word blocking |
||
|
Java applet , cookies , Active X , compressed , executable , multimedia file blocking |
|||
|
Time schedule control |
|||
|
Web Content Filter by SurfControl |
|||
|
Management |
Web-based user interface ( HTTP / HTTPS ) |
||
|
Quick Start Wizard |
|||
|
CLI ( Command Line Interface, Telnet / SSH* ) |
|||
|
Administration access control |
|||
|
Configuration backup / restore |
|||
|
Build-in diagnostic function |
|||
|
Firmware upgrade via TFTP / FTP |
|||
|
Syslog |
|||
|
SNMP management MIB-II |
|||
|
Max. Power |
10 Watt |
||
|
Dimension |
L220 * W160 * H36 ( mm ) |
||
|
Power |
DC 12V ~ 15V
|
||
|
Thông tin khác |
VoIP gateway, 2 port FXS kết nối với 2 ĐT bàn hoặc tổng đài, gọi và Fax miễn phí giữa các Văn phòng, hoặc gọi QT giá rẻ. |
||
